Floor & Area Generator for Revit Automate the creation of highly accurate floors and room areas in Autodesk® Revit®. This powerful plugin intelligently generates floor elements and area boundaries that automatically account for complex room geometry, including door thresholds, zero-height window sills, and wall niches. Stop manually modeling intricate room boundaries—map different floor types to specific room styles and generate precise floor finishes and exact net areas for your entire floor plan in just a single click.
PF Floor & Area Generator: Perfect Room Boundaries in Seconds
Creating accurate floor finishes and calculating the exact net area of a room is a notoriously time-consuming task in Revit. Manual modeling often ignores crucial real-world details like door thresholds, window sills, and wall recesses. The Floor & Area Generator eliminates this tedious manual work by automatically generating exact floor geometry and highly precise area boundaries for your entire project.
The plugin intelligently analyzes the surrounding geometry and extends the floor finish into all architectural recesses. Furthermore, it generates true room areas that can be easily copied to room elements, ensuring your schedules and material takeoffs reflect the precise, real-world net area, including thresholds and 0-height window sills.
Automated Floor Generation Generate physical floor elements across an entire floor plan instantly. The plugin maps your predefined floor types to specific room names or styles, ensuring every room gets the correct finish automatically.
-

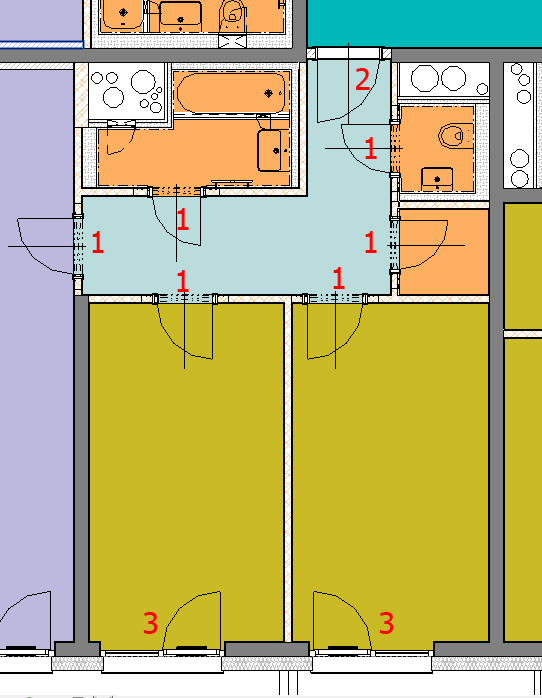

Intelligent Recess Detection: Automatically generates floors into door thresholds, wall niches, and recesses inside walls.
-
Zero-Sill Window Support: Accurately extends the floor geometry into window openings that have a 0 sill height.
-
Door Swing Recognition: Detects whether a door opens inward or outward to correctly calculate the threshold floor boundary.
-
Advanced Geometry Support: Seamlessly handles nested walls and complex perimeter shells.
Precise Area Generation Go beyond standard Revit room boundaries to calculate the absolute true net area of your spaces.
-
True Net Area Boundaries: Generates precise area lines that account for all structural recesses, ensuring highly accurate room areas.
-
Copy to Room Workflow: Easily copy the generated area boundaries directly into your room elements to instantly capture the area of thresholds and zero-height sills in your schedules.
-
Smart Detection Engine: Utilizes the same advanced detection as floor generation—accurately interpreting door swings, nested walls, zero-height window sills, and perimeter shells to define the exact calculation boundary.
