PF Wall finishes

PF Wall Finishes Generator: Automated Interior Detailing

Manually modeling thin finish layers like plasters, ceramic tiles, or skirting boards room-by-room is a tedious process that clutters your workflow and complicates model updates. The PF Wall Finishes Generator automates this entire process, allowing you to instantly apply accurate, parameter-rich surface layers to any room in your Revit project.

Whether you need a continuous plaster finish, complex bathroom tiling, or baseboard sweeps, this plugin handles the geometry generation for you while maintaining the integrity and flexibility of your BIM model.

Core Features

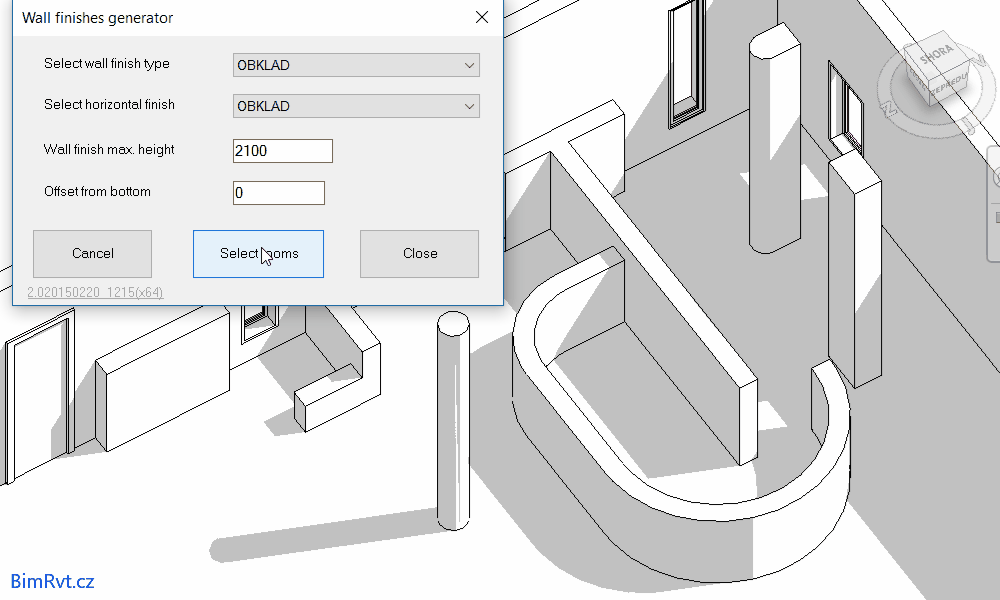

• Automated Room Finishes: Instantly generate final wall layers—such as plasters, tiles, skirtings, and other wall sweeps—along the entire perimeter of a selected room.

• Smart Wall Locking: The generated finish layers can be automatically locked to the host structural wall. If the main wall moves during a design change, the finish layer moves dynamically with it.

• Room Bounding Control: Easily toggle the "Room Bounding" parameter on or off for the generated finishes. This ensures your room areas remain perfectly accurate without the finish layers falsely shrinking the calculated space.

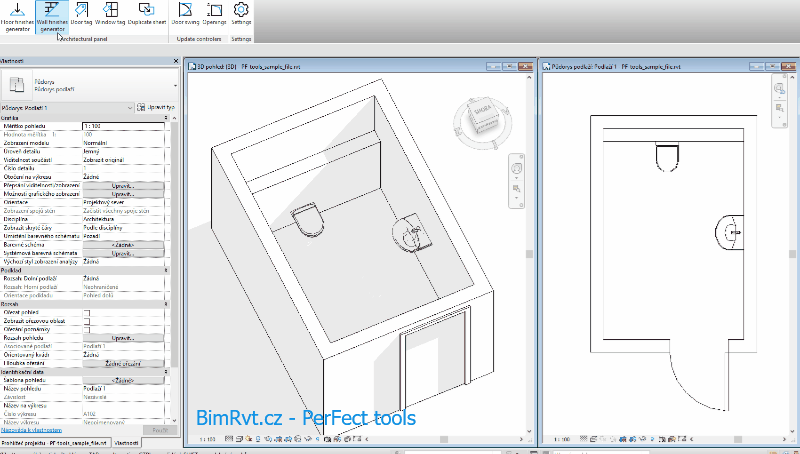

• Advanced Bathroom & Half-Wall Detailing: Create perfect bathroom layouts effortlessly. The tool can generate tiling not just on vertical surfaces, but also on the top horizontal surfaces of lower pre-walls (e.g., concealed toilet cistern enclosures).

• Customizable Offsets: Precisely control both the bottom and top offsets of the generated layers, making it incredibly easy to model wainscoting, partial-height tiling, or finishes that stop exactly at the suspended ceiling level.
